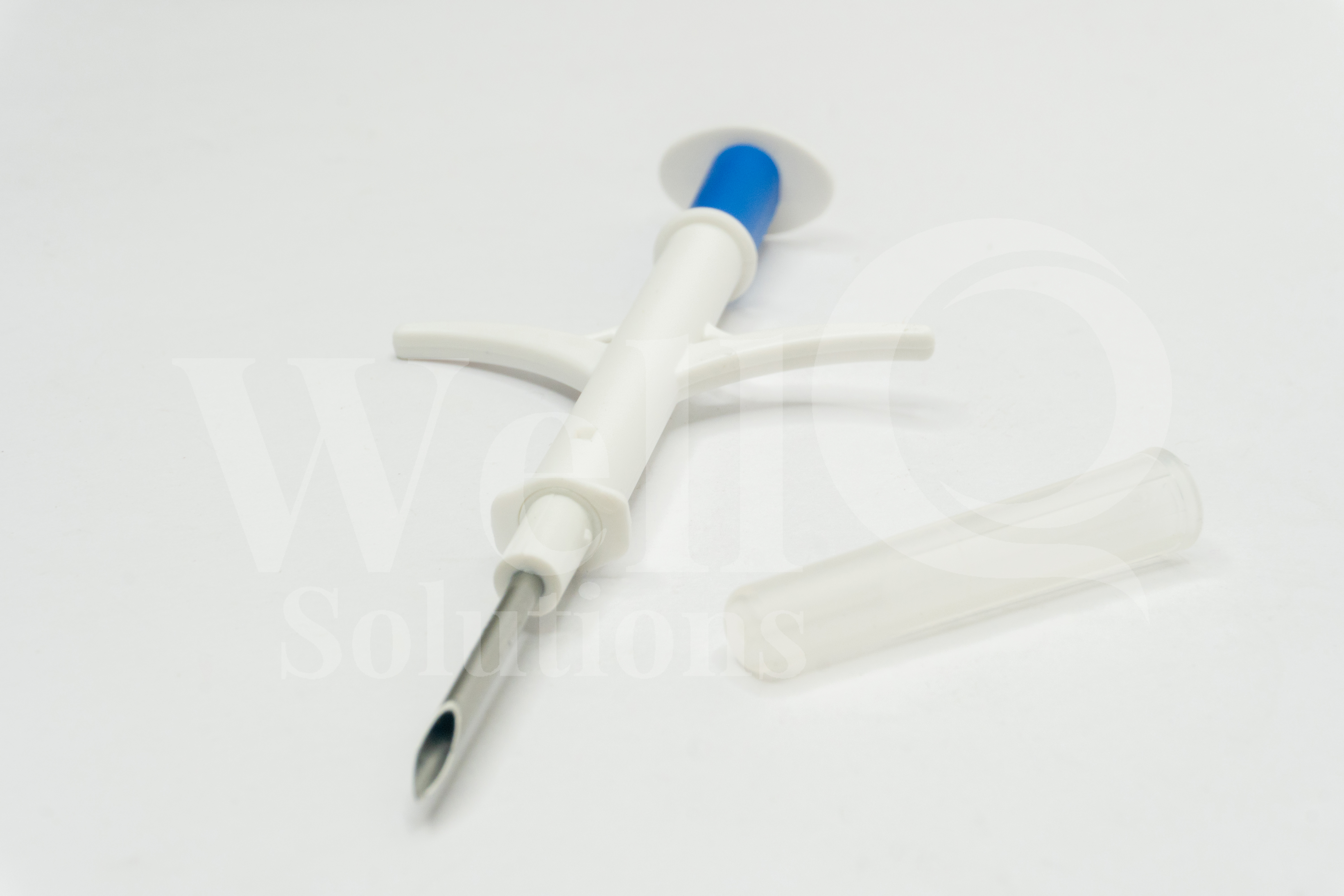

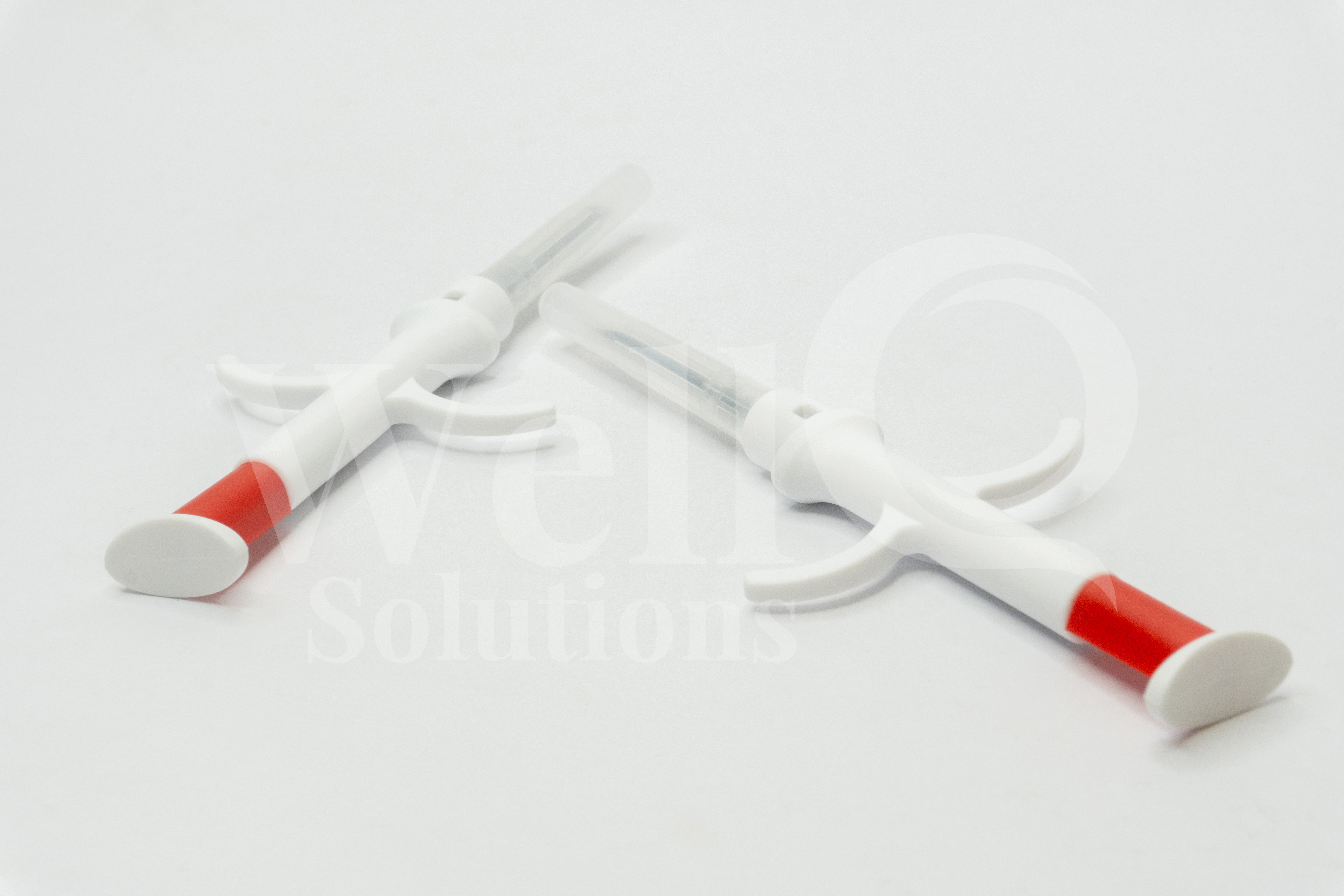

Injectable Tags
Animal Tags are passive tags operated for identification of livestock, health record keeping, insurance and slaughter houses. They are thrusted through injectable applicator. They provide adequate reading range to detect livestock from a considerable distance. Printing and encoding of these tags are also available for easy implementation
Description:
- The injectable tags usually contain RFID microchips. These microchips can store and transmit information wirelessly when scanned by an RFID reader.
- Injectable RFID tags are commonly used in the identification and tracking of animals. This is especially common in pets and livestock.
Specifications:
| Specification | Details |
|---|---|
| Dimensions | 2*12mm / 4*34mm / 4*22mm/ 3*14mm |
| Weight | ± 2gm |
| Encasement / Material | Bio glass |
| Packaging | Sterilised Premium Plastic Packing |
| Protocol | ISO 11784 , ISO 11785(FDX-B) |
| Operating Frequency | 134.2 KHz |
| Read Range Fixed Reader | Up to 30m (Reader Dependent) |
| Read Range Handheld Reader | Up to 10m (Reader Dependent) |
| IC Type | EM4305 |
| EPC Memory | Chip Dependent |
| User Memory | Chip Dependent |
| Operating Temperature | -25°C to +85°C |
| Storage Temperature | -40°C to +85 °C |
| IP Rating | IP68 |
| Chemical Resistance | Alcohol, Ammonium Chloride 25%, fuel B, HCL 10%, Salt Water |
| Shock & Vibration | IEC 68.2.29 [40 g, 18 ms, 6 axis, 2000 times] | IEC 68.2.6 [10 g, 10 to 2000 Hz, 3 axis, 2.5 h] |
| Tagging Method | Subcutaneous / External housing |
