Impinj Reader

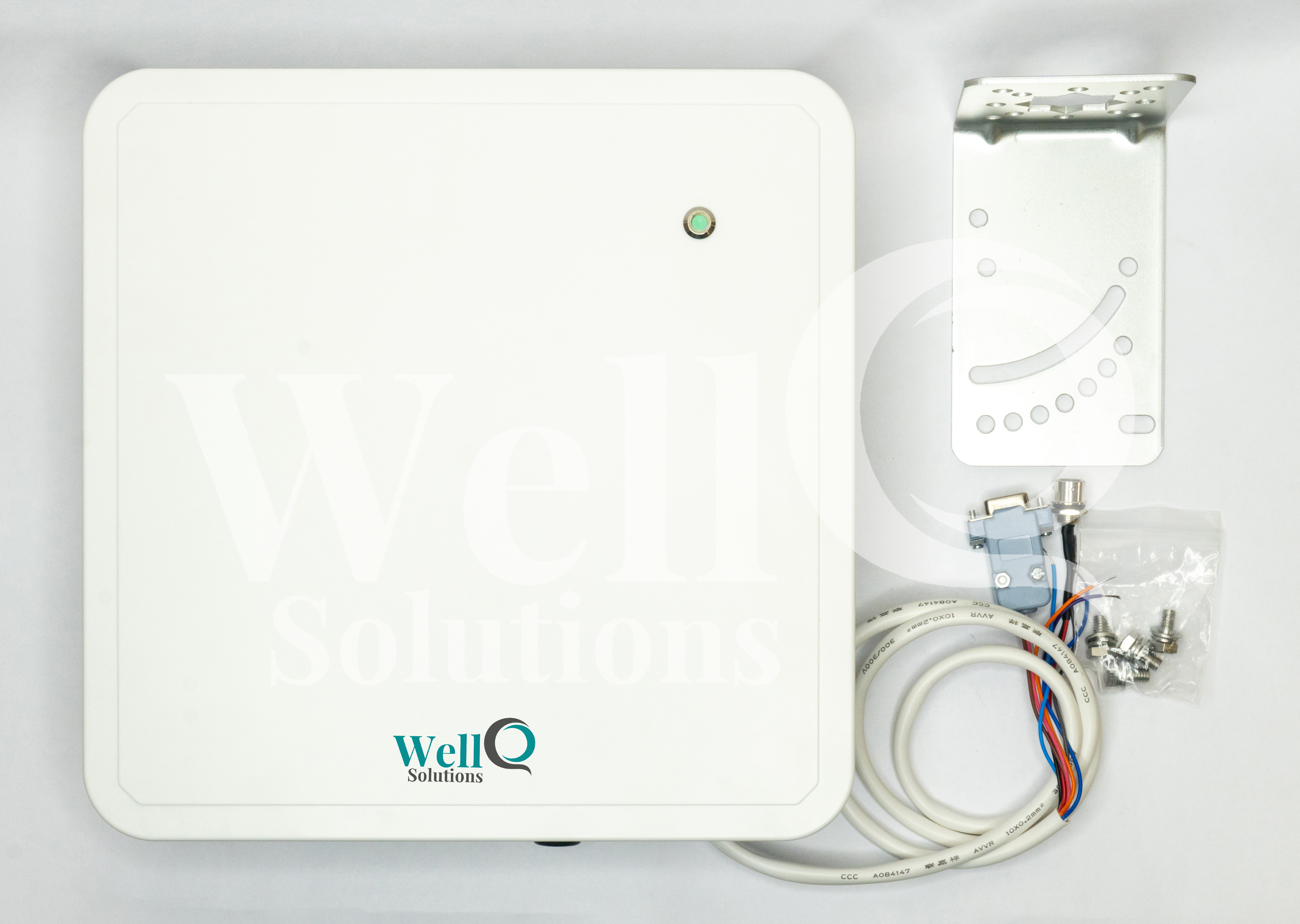

WellQ Solutions proud to present our RFID UHF Advance Integrated Reader – WQ-UR900 I. This model is specially built in such a manner so that it can withstand all challenges. With unique features like Long Range (upto 14m) distance, Compact, attractive reader, Single unit with inbuilt antenna and remarkable Mid read range clearly make this reader stand out.
Description:
- Easy installation and mounting.
- Housed in an ABS chassis.
- Features integrated RF reader antenna, small in size, and light in weight.
- Industrial-grade standard product design, sturdy and durable.
- High protection grade - IP66.
- Easy interfacing to control systems.
- Complies with certifications.
- Web management-based firmware upgrade capability.
- RFID Module- Impinj R2000.
Specifications:
| Specification | Details |
|---|---|
| Air Interface Protocol | ISO 18000-6C (EPC Class 1 Gen 2), ISO 18000-6B |
| Protection Grade | IP 66 |
| Frequency Band | Standard ISM 865MHz - 867MHz (India), 902-928MHz (USA), 865-868MHz (Europe) |
| Frequency Hopping | FHSS |
| Processor | ARM 9 (Linux OS) |
| RFID Module | Impinj R2000 |
| RF Power Output | 0 to +30 dBm (adjustable) |
| Antennas | Single unit with inbuilt Circular 9 dBi Antenna |
| Operating Mode | Answer, Active, Trigger |
| Read Range | 0-14m |
| Write Range | 0-6m |
| Reading Clue | LED & Buzzer |
| Receive Sensitivity | -80dBm |
| Input Power | Wide Voltage Input (+9V to +24V) |
| Power Consumption | 1W |
| Dimensions (L x W x D) | 298 x 298 x 105 mm |
| Net Weight | 2800g |
| POE | Power Over Ethernet (Optional) |
| Operating Temperature | -30℃ to +65℃ |
| Storage Temperature | -40℃ to +70℃ |
| Humidity | 10-95% non-condensing |
| API Support | .NET |
| Communications | RS-232, RS-485, Wiegand 26/34 (TCP/IP & WiFi Optional) |
| Housing Material | ABS chassis, meets IP65 standards |
| Additional Service | Demo Software and SDK for Further Development |
| Regulatory Compliance | Complete with CE & FCC |
